Adjustable Heim Joint Fabrication Kit – Chromoly Linkage & Frame Mount
Build a custom, heavy-duty linkage and anchor point in one go. This complete fabrication kit combines our adjustable X-Series Chromoly Rod End Linkage with a heavy-duty weld-on frame tab and hardware.
It is the perfect all-in-one solution for mounting brake torque arms, custom shifters, or motor mounts where you need both the adjustable linkage and a solid mounting point on the frame.

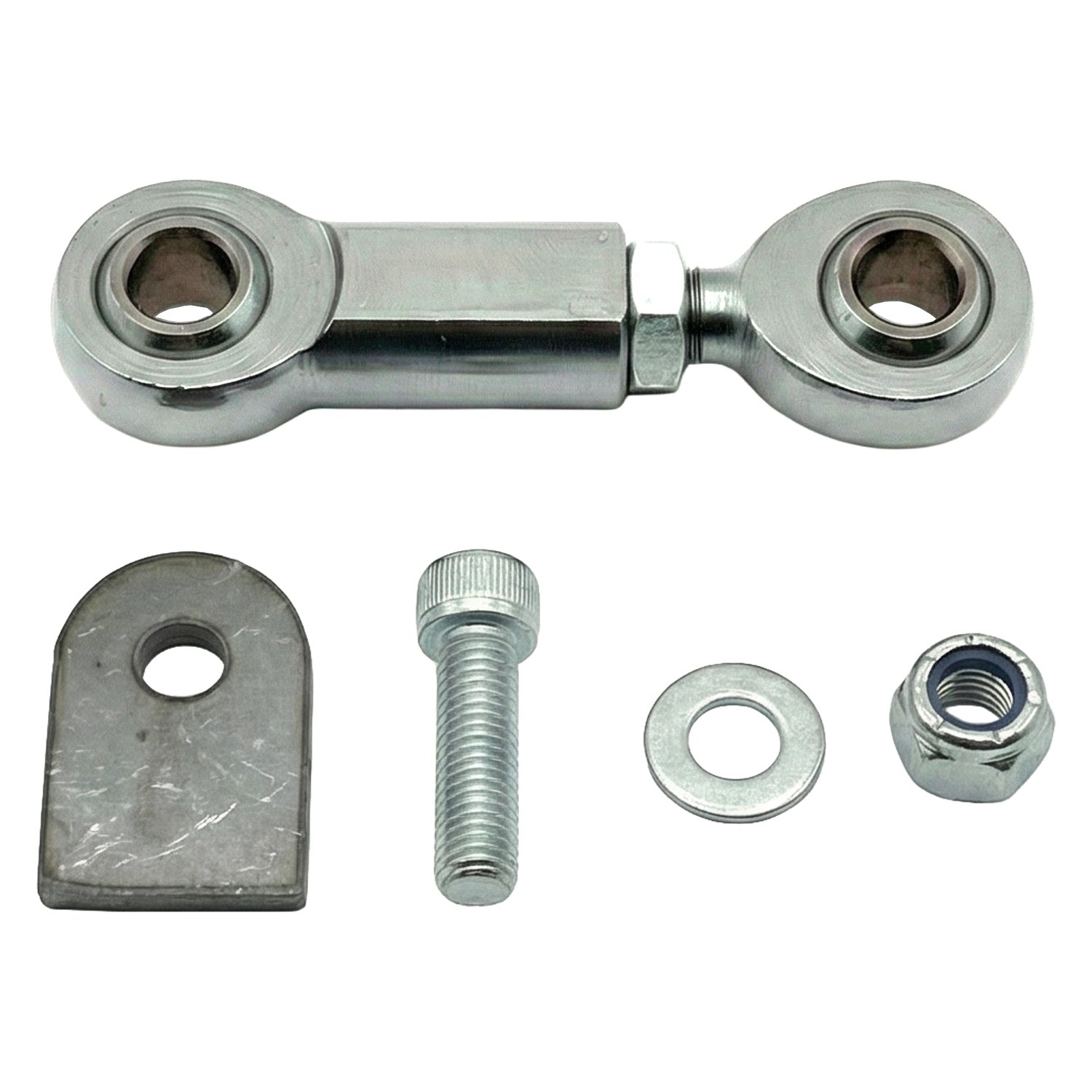

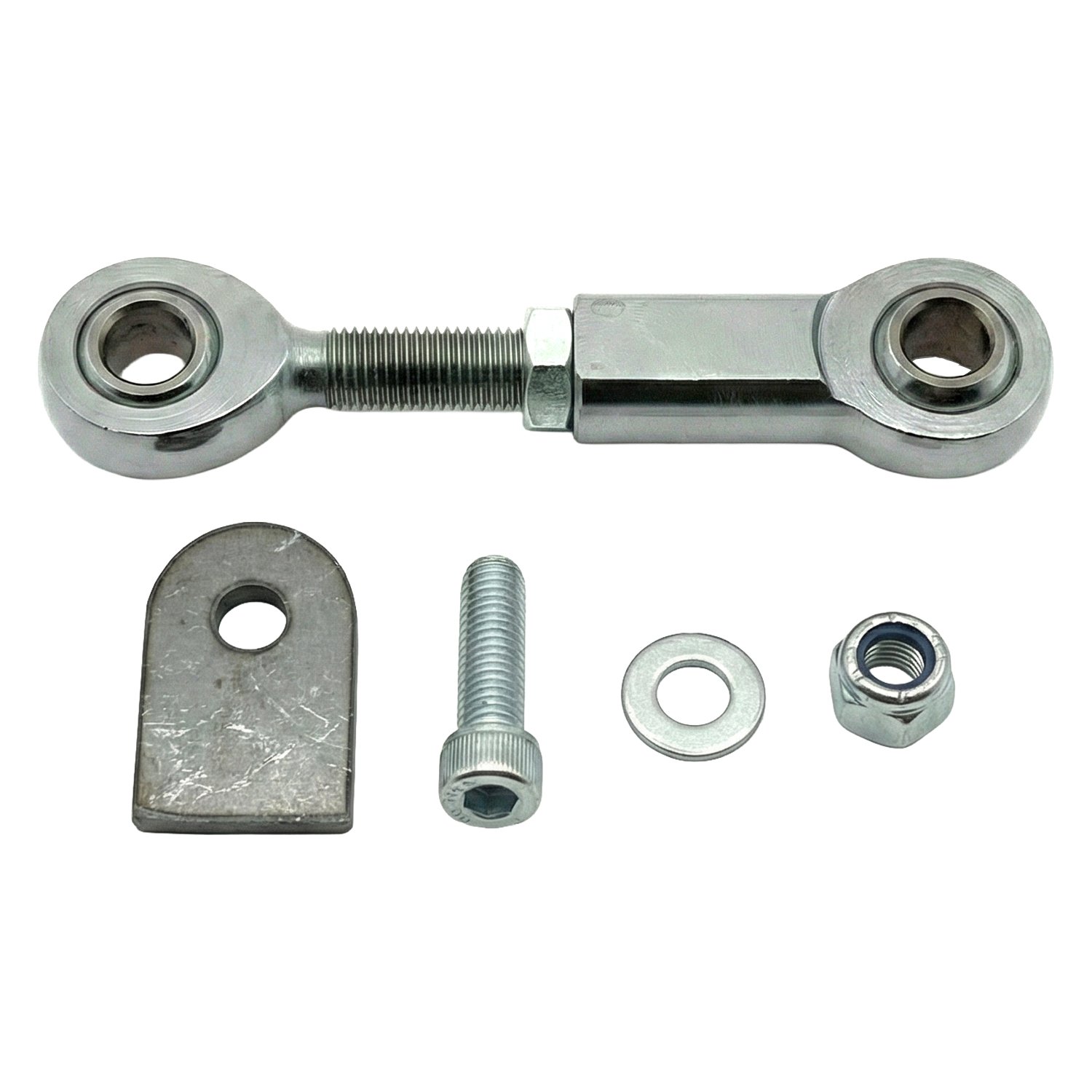

Complete Kit Includes:
- (1) Male Chromoly Rod End (Hard Chrome / X-Series Spec)
- (1) Female Chromoly Rod End (Hard Chrome / X-Series Spec)
- (1) Zinc Plated Jam Nut
- (1) Heavy-Duty Weld-On Mounting Tab (1/4″ Thick Mild Steel)
- (1) Complete Hardware Set (Bolt, Flat Washer, Nylock Nut)
Common Applications:
- Brake Torque Arms: The included weld-on tab allows you to anchor a rear brake caliper to any frame tube, while the adjustable linkage lets you dial in the perfect caliper angle.
- Top Motor Mounts: Align your engine to the frame with precision. The chromoly construction handles the vibration and stress of V-Twin engines.
- Custom Controls: Ideal for jockey shifts or foot clutch linkages that require a pivot point welded to the chassis.
Linkage Specs:
- Material: Heat-Treated 4130 Chromoly Steel (Both Ends)
- Finish: Hard Chrome Plated (Ends) / Zinc Plated (Nut)
- Race: Self-Lubricating Nylon/PTFE (Maintenance Free)
- Load Rating: ~7,639 lbs (5/16″) | ~9,544 lbs (3/8″)
Weld-On Tab Specs:
- Material: Mild Steel (Ready to Weld)
- Dimensions: 1″ Wide x 1.5″ Long
- Thickness: .250″ (1/4″) Heavy Duty
- Hole Size: Matched to Kit Size (5/16″ or 3/8″)

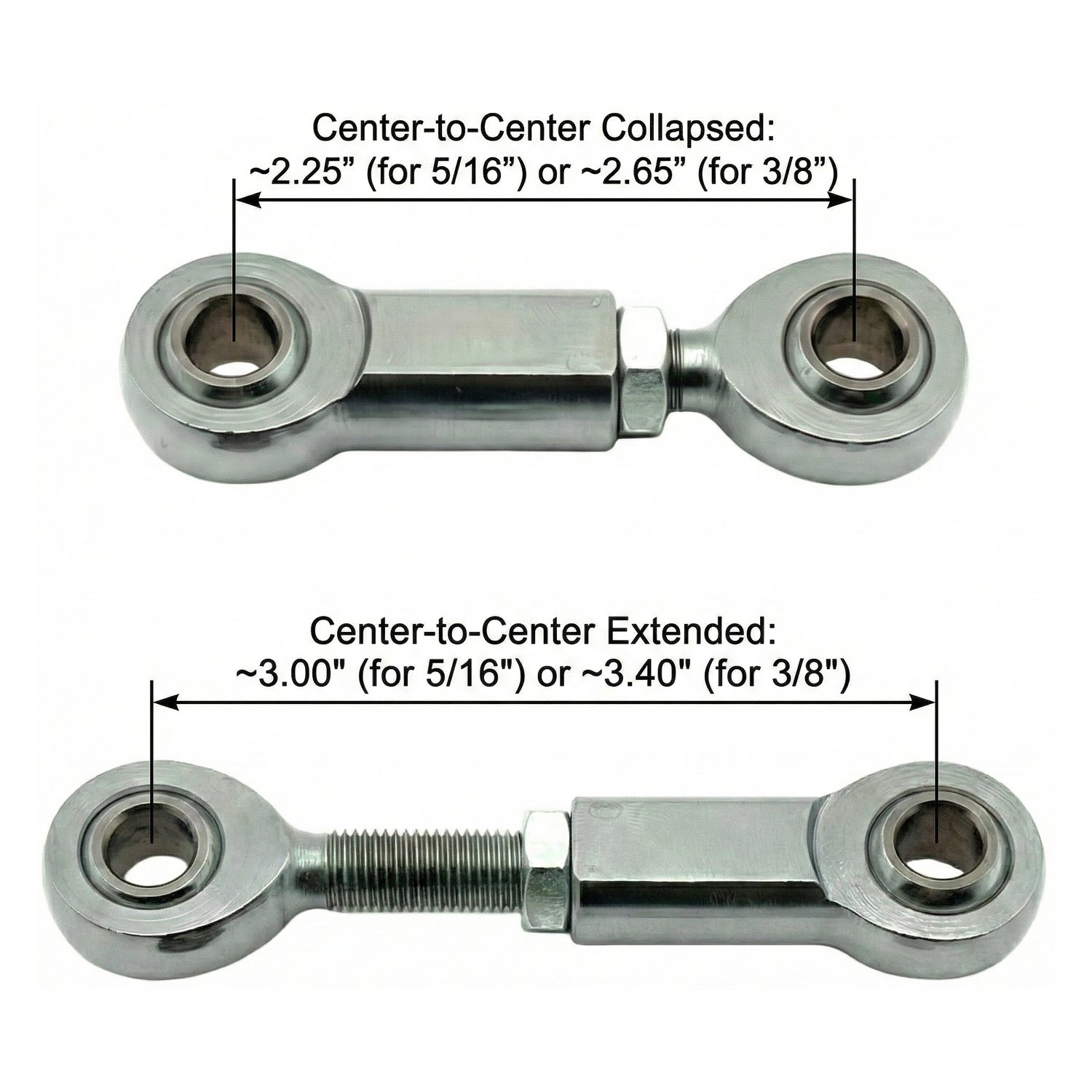

Calculated Adjustability (Center-to-Center):
| Dimension | 5/16-24 Kit | 3/8-24 Kit |
|---|---|---|
| Min Length (Collapsed) (Fully threaded w/ Jam Nut) |
~ 2.25″ | ~ 2.65″ |
| Max Length (Extended) (Min. 4 thread engagement) |
~ 3.00″ | ~ 3.40″ |
| Total Adjustment Range | ~ 0.75″ | ~ 0.75″ |
Note: Max length is calculated based on maintaining a minimum of 4 full threads of engagement for safety.
